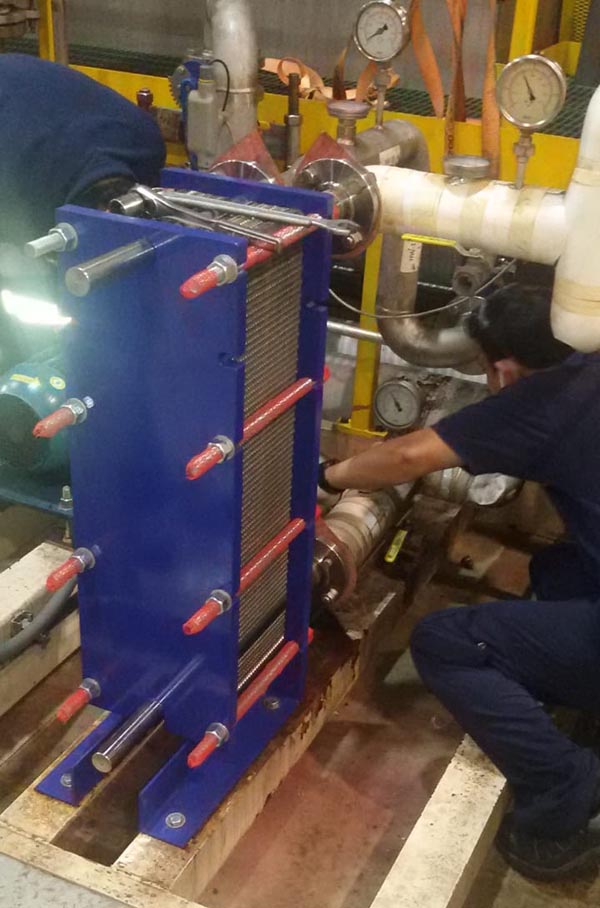

Plate and Gasket Heat Exchanger

Item No.: 001
INQUIRY
Description


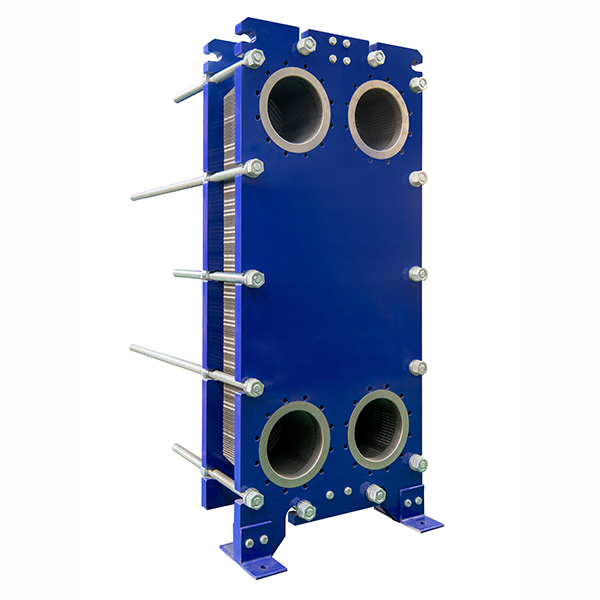

Plate and Gasket Heat Exchanger provide efficient heat transfer in compact equipment with a small footprint. The units have a flexible design and are easy to service and maintain. The product range is extremely wide and is used in duties for heating, cooling, heat recovery, evaporation and condensation in industries ranging from HVAC, refrigeration, engine cooling, dairy and food to heavier processes like chemical processing, oil production and power generation.

Features for Shineheat Plate Heat Exchanger


Professional Frame Fabrication

CNC cutting for fame, warranty frame size exactly accuracy (less than 2mm size deviation)

Sandblasting for First fame Coating, then three ground coat paints, one finishing paint.

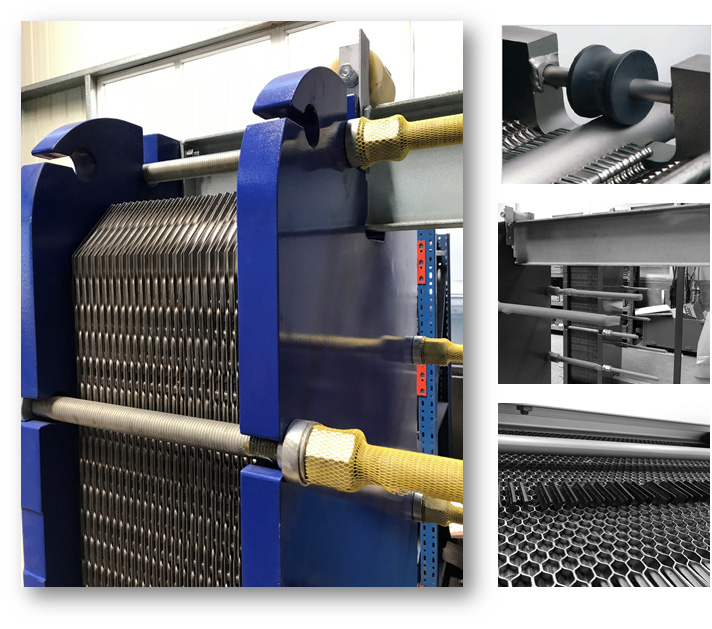

Roller Bearing make movable frame easier for assembly

Special Process Coating in Carry Bar for better Anti-Corrosion








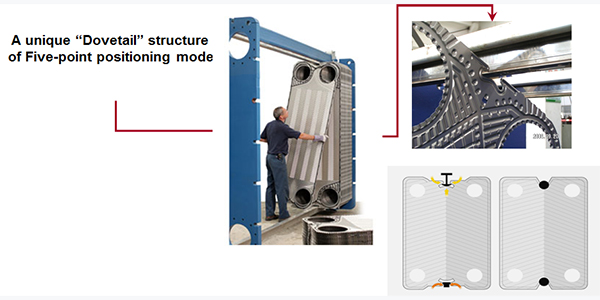

Widely Option for Plates Model

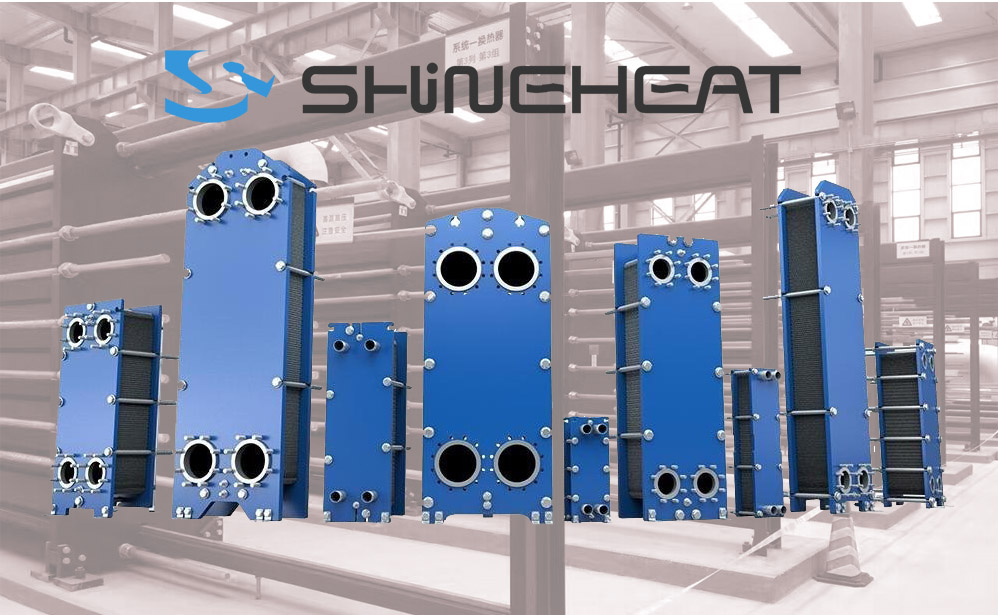

150 Type Plate Models Cover Most Regular OEM Plates Patterns,

Transfer Area from 0.032~3.96 m2/P, Connection Size from DN32-DN500

The Most Optimal Solution by Premium Plates Design among various suppliers

Large Availability for Service Replacement Spare Parts, one-stop procurement








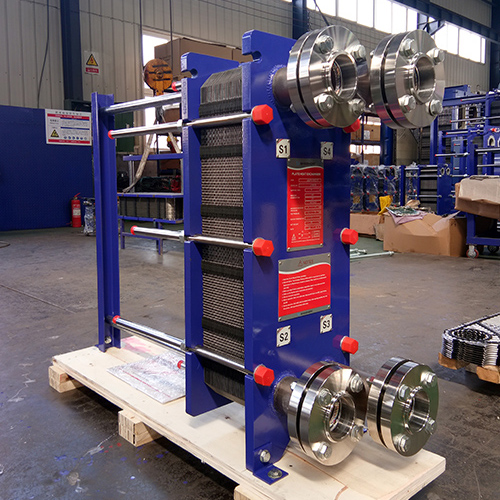

Flexible Connections

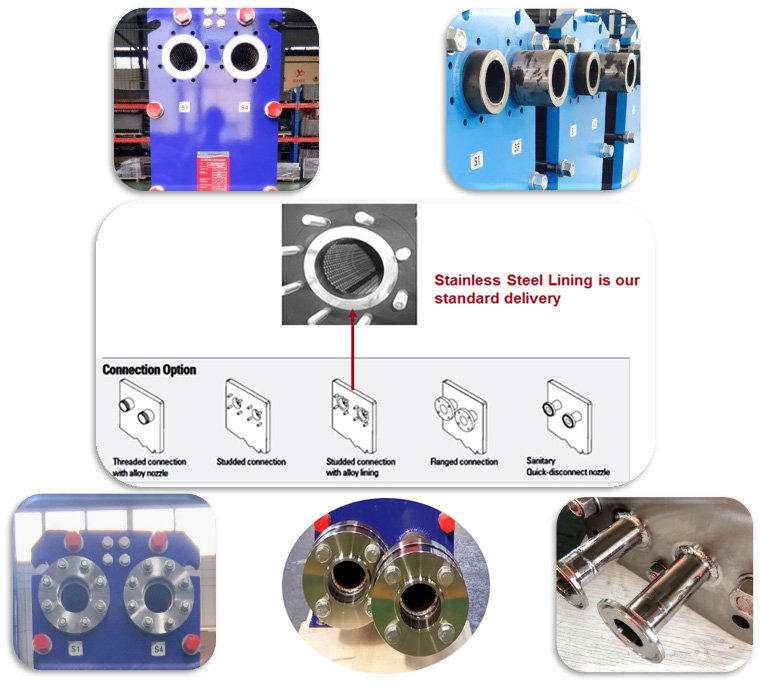

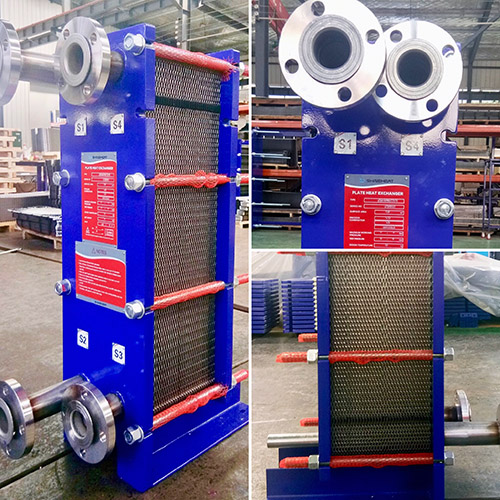

SS316L Studded Lining Connection with Matched Flange

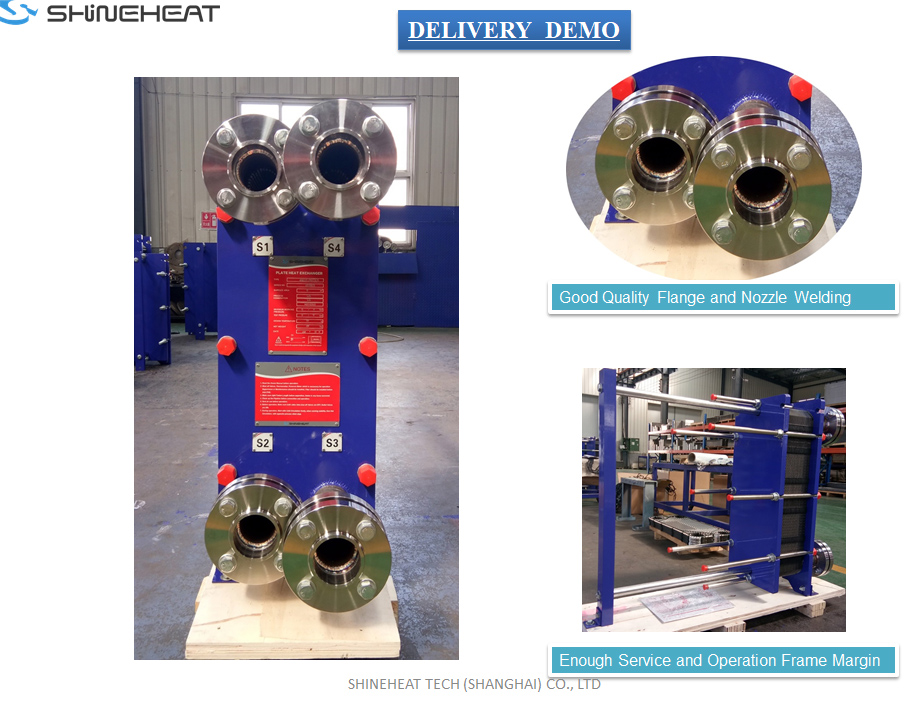

Welded Nozzle Connection with Matched Flange

ASME Standard Boosted Connection

All Optional Connection Standard (ANSI, DIN, PED, GB)









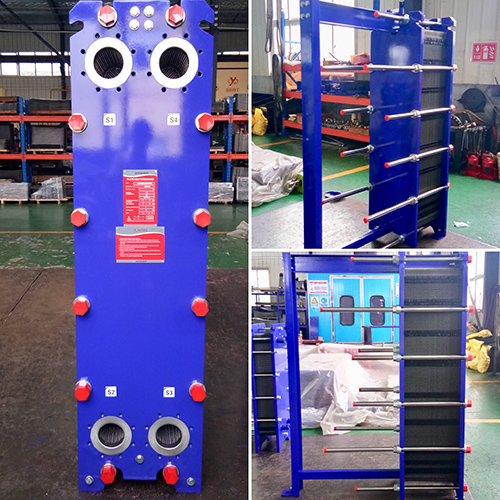

Frame Expandable

Our standard Frame Capacity Margin is 30% by adding extra Plate; Enough Frame Margin will also contribute to convenience for plate removing;






Customized Frame and Connection design for special workspace



When the Operating Space is Limited, we design Compact Frame Structure to save space. Even in replacement Job, we would recalibrate connections and reduce extra pipeline work.










Optional for Frame Material Variety

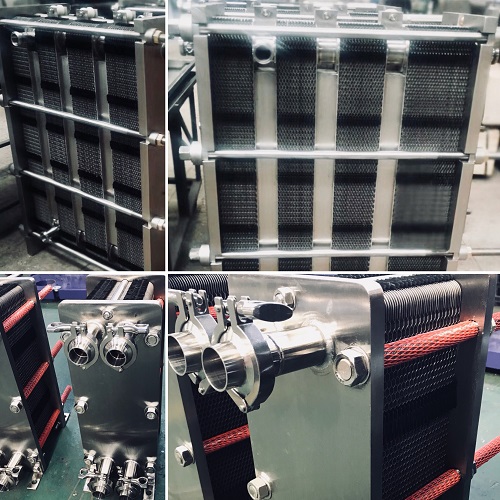

For Sanitary or Diary industries, Stainless Steel Frame and accessories is required for Frame Material. Now we could offer

 Solid Stainless Steel Frame SS304 or SS316L

Carbon Steel Coating Stainless Steel SS304 or SS316L




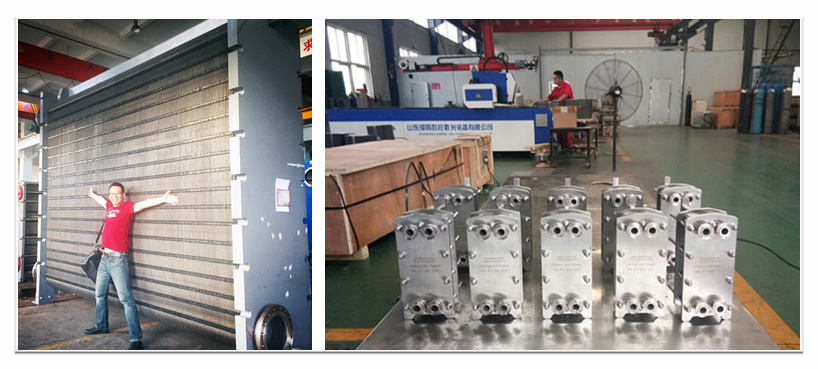

Extended Line for Plate and Gasket Heat Exchanger



Free Flow/Wide Gap Plate Heat Exchanger

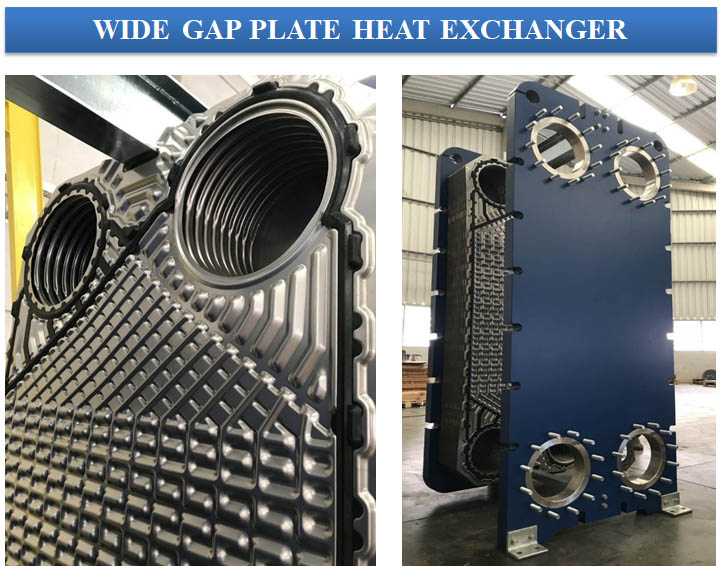

 SHINEHEAT Free Flow Plate Heat Exchanger, which deigned with a more wider fluid-flow Channel, Making it ideal for viscous fluids, slurries, and effluent streams that contain particles and fibers which could block the flow channels. Furthermore, two fluids are individually gasketed sealing, make it possible for operating where product contamination can’t be tolerated.

Like frame and gasket heat exchanger, Free Flow Plate Heat Exchanger is in compact structure, easy to dismountable and clean. Capacity expansion also could be realized.






CE Certified Plate Heat Exchanger is available for optional request
