Description

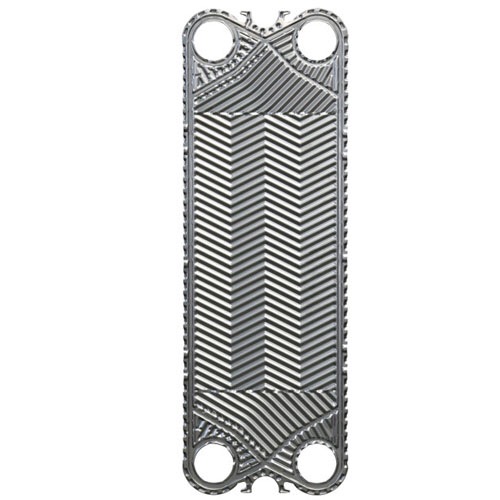

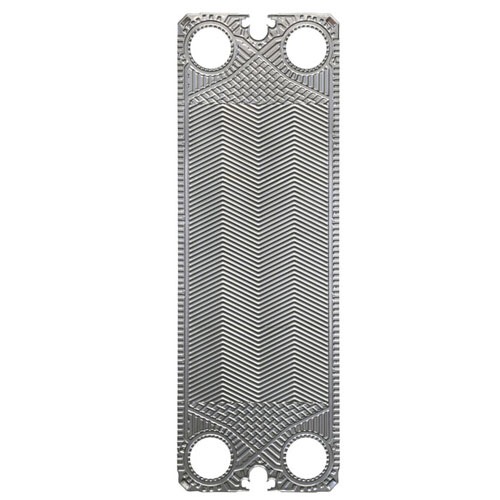

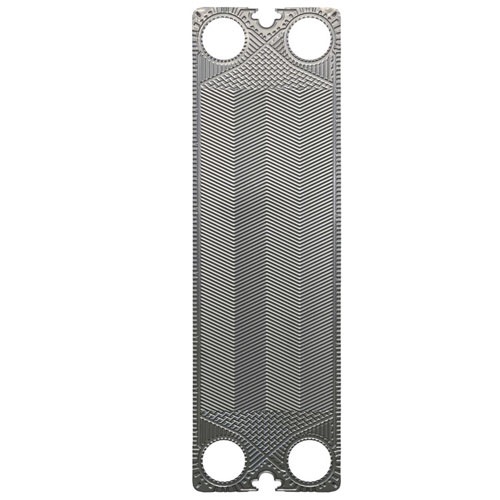

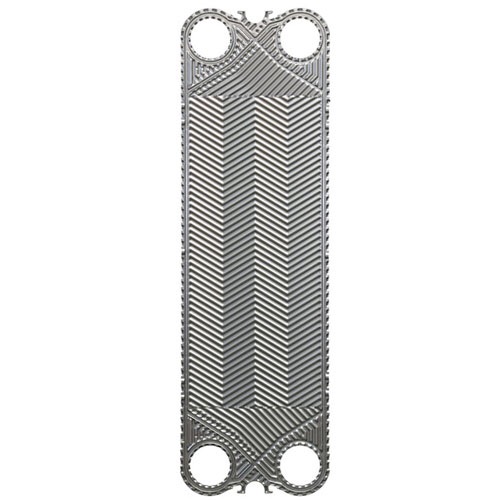

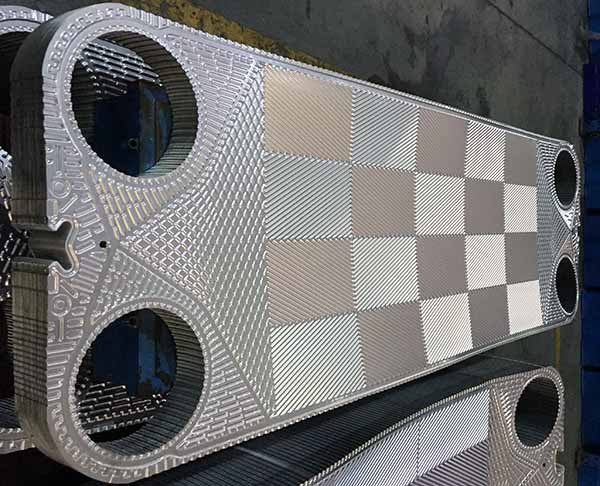

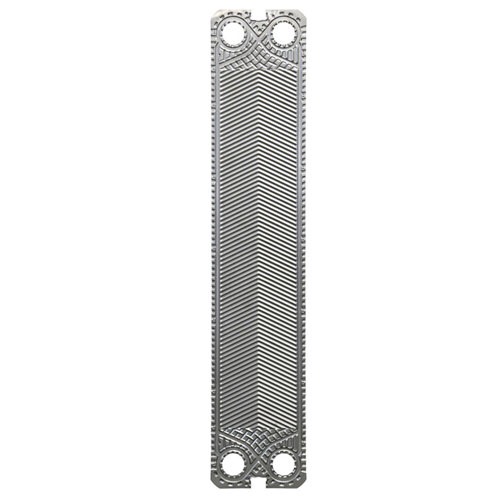

Spare parts for Plate Heat Exchanger
Identical replacement Plates and Gaskets for ThermoWave are available for service and mantainance.
Identical replacement Plates and Gaskets for ThermoWave are available for service and mantainance.
| THERMO WAVE PLATE SPECIFICATION | ||||||
| Brand | Model | Depth of Groove (mm) | Dia. of Plate Hole (mm) | Pitch of Plate Hole (mm) |
Outline Dimension (mm) |
Transfer Area （㎡） |
| Thermo Wave | TL250A | 3.8 | φ107 | 774*256 | 1014*438 | 0.28 |
| TL500A | 3.8 | φ107 | 1256*256 | 1496*438 | 0.5 | |
| TL250B | 2.4 | φ107 | 774*256 | 1014*438 | 0.28 | |
| TL500B | 2.4 | φ107 | 1256*256 | 1496*438 | 0.5 | |
| TL400A | 3.8 | φ85 | 1208*212 | 1384*369 | 0.39 | |
| TL200A | 3.8 | φ85 | 620*212 | 796*369 | 0.18 | |
| TL90B | 2 | φ43 | 565*125 | 721*244 | 0.1 | |
| TL150B | 2 | φ43 | 825*125 | 981*244 | 0.16 | |
| TL650A | 4 | φ206 | 1153*305 | 1496*586 | 0.57 | |
