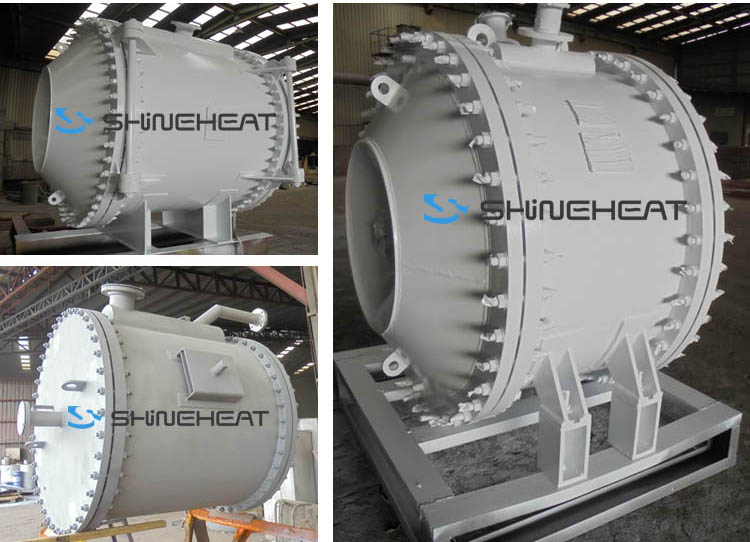

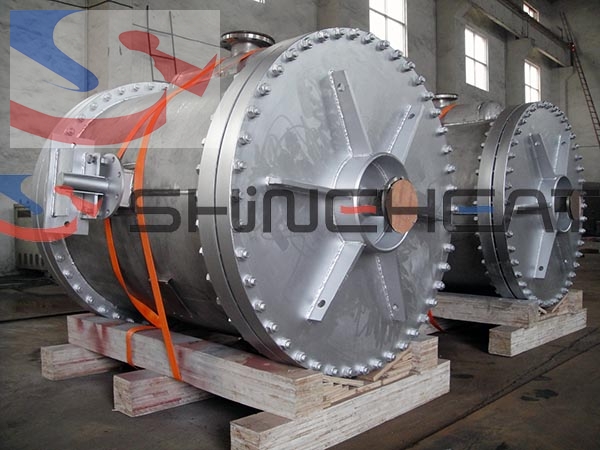

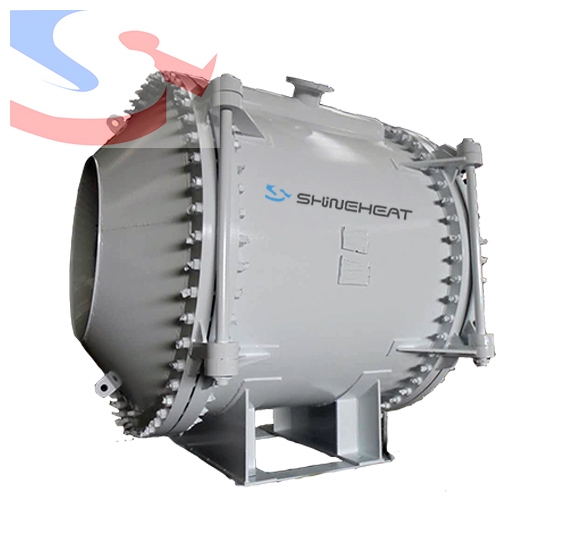

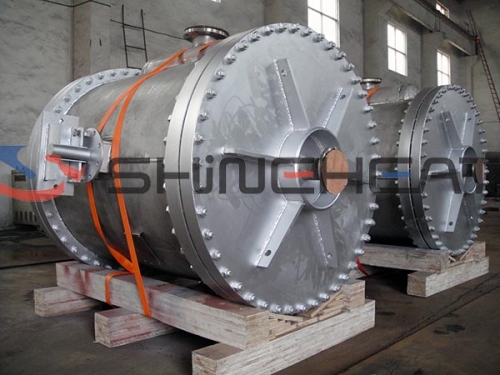

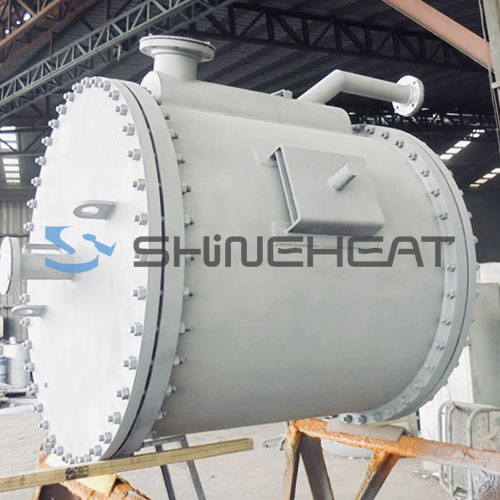

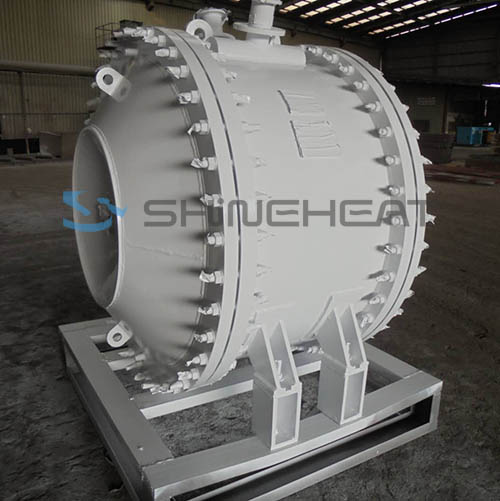

Welded Spiral Plate Heat Exchanger

Item No.: 006
INQUIRY
Description



Spiral Heat Exchangers are the ideal solution for "Heavy Duty" applications. Ideal for extremely dirty and fouling process duties. The self-cleaning features inherent in the design, give unparalleled uptime between service intervals and quick and easy service turn-around.


Design Structure for Spiral Heat Exchanger

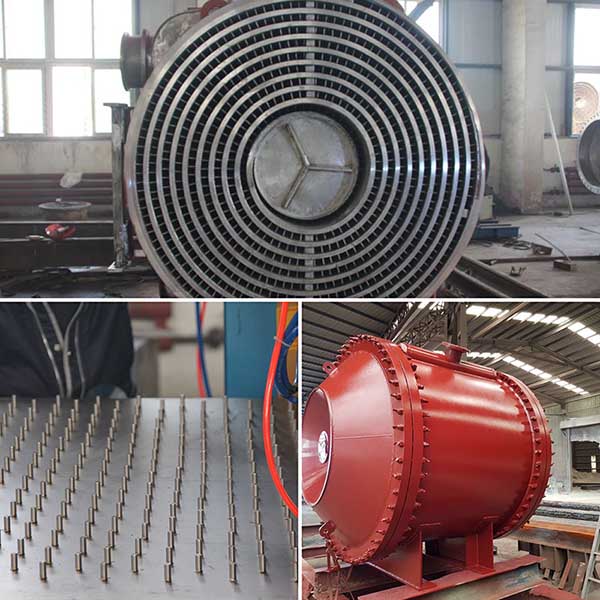

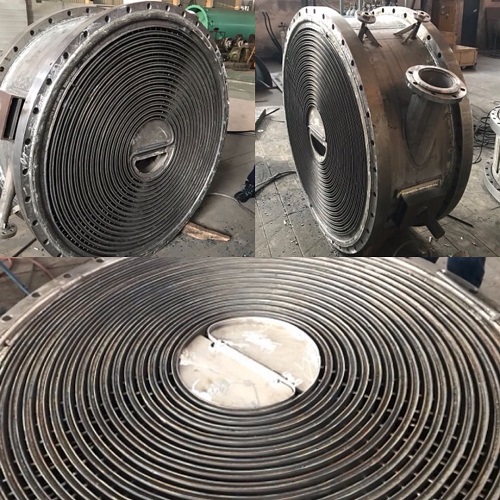

The spiral plate heat exchanger is made by rolling two long metal plates around a center core to form two concentric spiral flow passages, one for each fluid. The plate edges are welded shut so that each fluid stays within its own passage and there is no flow bypassing or intermixing. Channel plate width and spacing (gap between plates) are optimized for the specified duty, maximum heat transfer, and ease of access. The plate gap is maintained by welded spacer studs although some designs do not require them.
Due to its inherent circular design and large surface area to volume ratio, the spiral heat exchanger offers unique advantages over other types of heat exchangers such as the shell and tube heat exchanger.


Features and Advantages for Spiral Heat Exchanger

High Thermal Efficiency
Single and long curving flow passages with a uniform rectangular cross-section ensure superior flow distribution, high turbulence, and high heat transfer coefficients (50-100% greater than shell & tube).
Self-Cleaning Passages
The spiral's mono pass induce high shear rates that scrub away deposits as they form. This self-cleaning effect reduces fouling and makes spiral heat exchangers ideal for handling tough fluids such as process slurries, sludges and media with suspended solids or fibers.
Countercurrent or Co-current
Spiral heat exchangers normally operate in true countercurrent flow for close approaches and temperature crosses. Occasionally a co-current flow design has major benefits, especially in cooling or heating fluids prone to gelation, burn-on, freezing or similar skin temperature related fouling.
Small Footprint & Easy Access
The spiral heat exchanger is compact and requires minimal space for installation and servicing. Removable covers provide easy access to interior heat transfer surfaces for field inspections, routine maintenance or manual cleaning if required.


Supply Range for Sprial Heat Exchanger
                            Min~Max
 Heat Transfer Area (m2)                                5~600
  Design Temperature (℃)                             -50~400
 Design Pressure (Bar)                        Full Vacuum~20
 Application Code              ASME, KS, JIS, BS, PED
 Spiral Plate Material  SS304, SS316L, 254SMO Nickel Alloy, C-276 , Titanium


Typical Spiral Configurations
  • Spiral Flow Both Sides
* Liquid to liquid cooling, heating or heat recovery
* Steam heating or vapor condensing
* Suitable condenser at pressures above atmospheric
* Countercurrent or co-current flow
* Best for crossing or close approach temperatures
* Self-cleaning effect in both spiral passages
* Ideal for handling suspensions, slurries & sludges
* Removable covers for independent & easy access





  • One Side in Cross Flow, One Side in Spiral Flow
* Ideal for condensing under high vacuum
* Vapor in annular cross flow
* Cooling medium in spiral flow
* Extremely low vapor side pressure drop
* Large flow cross-section for large vapor volumes
* Short height of condensing section
* Suitable in liquid to liquid duty with large flow imbalance



  • Combined Cross - Spiral Flow
* Vapor to liquid condensing
* Optimal for mixed vapors with inert gases
* Built-in internal subcooling section
* Suitable for low to moderate operating pressures
* Combines features of Types 1 & 2
* Excellent steam heater of viscous fluids & slurries in horizontal direction



Key Application Industries
PVC slurries
Particle laden/fiberous media in Ethanol, Textiles, Pulp and Paper etc.
Erosive slurries Metal extraction and Processing
Hydrocarbon Processing
Viscous fluids such as Heavy Oils and Oil Extraction
Distillation, Condensation and Reboilers
Vegetable Oil Deodorizing
Non-Newtonian fluids
Sewage Sludge and Waste Water



Spiral Heat Exchangers & Renewable Energy
Spiral heat exchangers are also used in green anaerobic digestion processes that produce biogas from organic wastes such as livestock manure, food by-products, fats, oils, and grease.
Biogas, a mixture of methane and CO2, is a renewable energy that can be combusted to generate heat and electricity. After dewatering, the remaining pathogen-free biosolids can be used for soil conditioning as fertilizer.


Service and Replacement Manufacturing
Customized design and manufacturing is available from us. The old equipment could be replaced by brand new by which is 100% identical and same in size and thermal performance.
End user doesn't  need to modify piping and foundation.
