Description

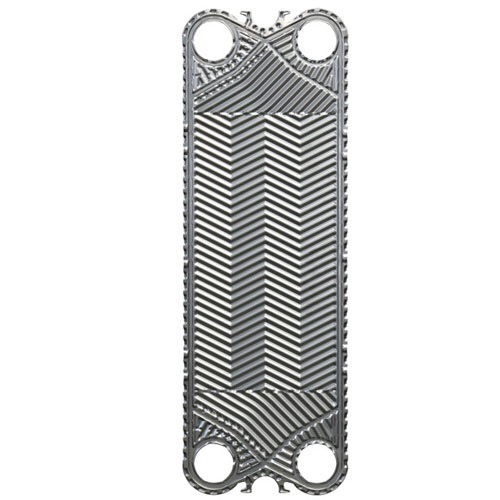

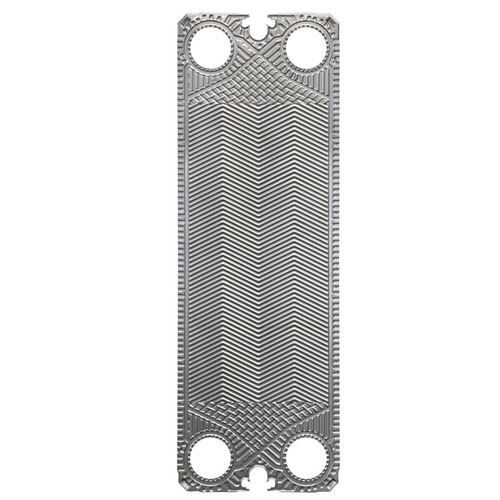

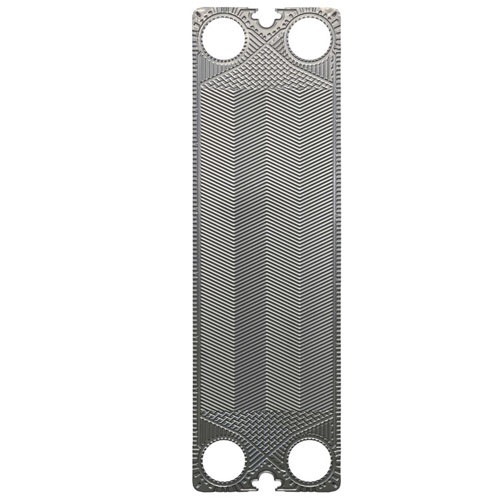

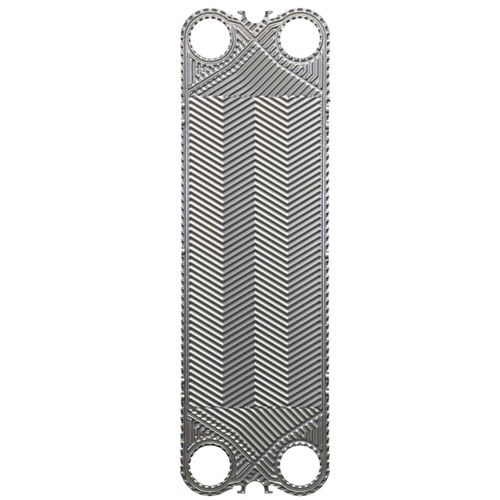

Spare parts for Plate Heat Exchanger
Identical replacement Plates and Gaskets for GEA / Kelvion are available for service and mantainance.
Identical replacement Plates and Gaskets for GEA / Kelvion are available for service and mantainance.
| SPECIFICATION | ||||||
| Brand | Model | Depth of Groove (mm) | Dia. of Plate Hole (mm) | Pitch of Plate Hole (mm) |
Outline Dimension (mm) |
Transfer Area （㎡） |

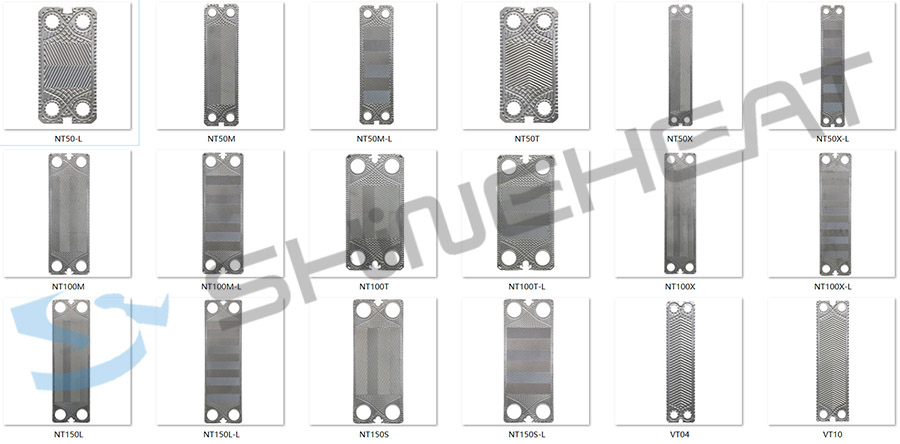

| GEA / Kelvion | VT04 | 2.55 | φ32 | 480*61 | 550*129 | 0.04 |
| VT10 | 3 | φ50 | 691*118 | 780*212 | 0.1 | |
| VT20 | 3.9 | φ79 | 868*212 | 999*337 | 0.26 | |
| VT20P | 3.3 | φ75 | 868*212 | 999*338 | 0.26 | |
| VT205 | 3.95 | φ78 | 869*212 | 994*339 | 0.27 | |
| VT40 | 3.9 | φ115 | 1227*257 | 1400*425 | 0.46 | |
| VT40(M) | 3.2 | φ115 | 1127*257 | 1400*424 | 0.5 | |
| VT405-New | 3.3 | φ118 | 855*257 | 1027*430 | 0.34/0.32 | |
| VT405-Old | 3.8 | φ111 | 855*257 | 1024*429 | 0.34 | |
| VT80 | 3.9 | φ175 | 1526*382 | 1766*614 | 0.84 | |
| VT80(M) | 3.2 | φ175 | 1526*382 | 1766*614 | 0.84 | |
| NT50T | 2.8 | φ56/58 | 371*130 | 492*246 | 0.07 | |
| NT50M | 2.8 | φ56 | 743*130 | 864*246 | 0.18 | |
| NT50X | 2.8 | φ56 | 1115*130 | 1236*246 | 0.26 | |
| NT100T/S | 3.2 | φ110 | 707*262 | 897*445 | 0.25 | |
| NT100M | 3.2 | φ110 | 1113*262 | 1303*445 | 0.44 | |
| NT100X | 3.2 | φ110 | 1519*262 | 1709*445 | 0.63 | |
| NT150S | 3.2 | φ155 | 1092*314 | 1320*541 | 0.48 | |
| NT150L | 3.2 | φ155 | 1572*314 | 1800*541 | 0.85 | |
| FN40 | 5 | φ120 | 1227*257 | 1406*432 | 0.45 | |
| FA184 | 12 | φ194 | 1526*404 | 1759*665*1.0 | 0.88 | |
| FA161 | 12.5 | φ90 | 1240*310 | 1456*476*1.3 | 0.56 | |
