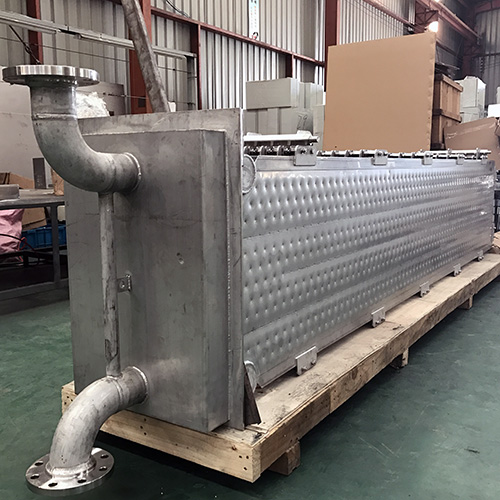

PILLOW PLATE HEAT EXCHANGER

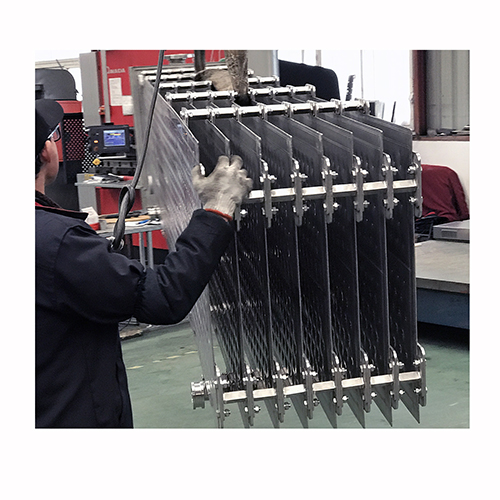

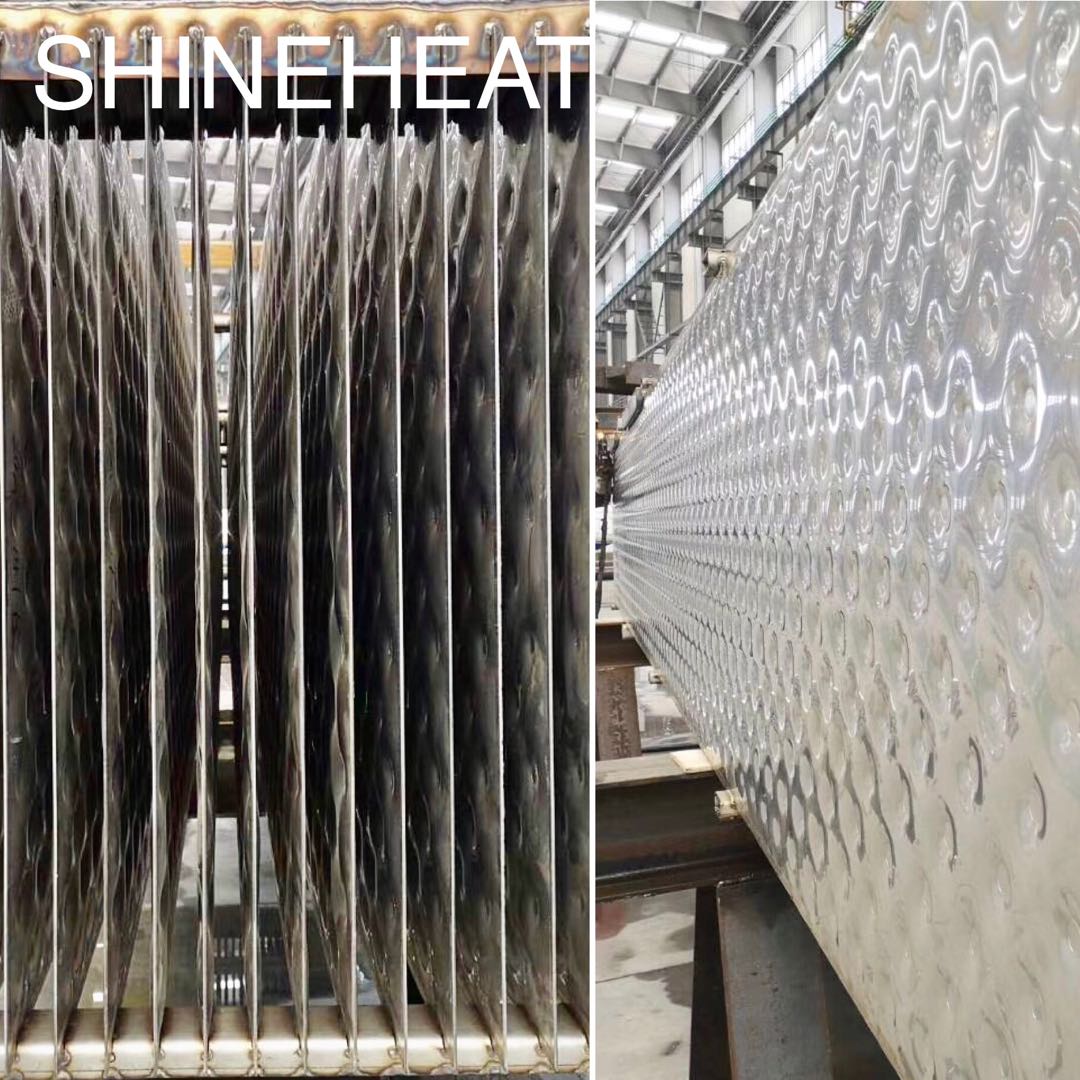

The Pillow Plate Heat Exchanger realizes thermal transfer through Embossed or Corrugated plates however, sealing is by means of welding and not through rubber gaskets. The distance or gap between each set Pillow Plates can be adjusted to create a Wide Gap / Free Flow on the fouling side.
Compared to other types of Plate Heat Exchangers, the Pillow Plate Heat Exchanger has some unique features and advantages, especially for fluids containing impurities or high viscosity or for complex applications. In the below chart, you find various applications in which the Pillow Plate Heat Exchanger would be a good consideration.
| Style | Pillow Plate Heat Exchanger | Shell Tube Heat Exchanger | Gaskeked Heat Exchanger | Spiral Heat Exchanger |
| Operation temperature range | <800℃ | <800℃ | <170℃ | <350℃ |
| Max. pressure | <60 bar | <200 bar | <32 bar | <25 bar |
| Heat transfer coefficient of water[W/m2·℃] | 3500 | 2700 | 5600 | 2000 |
| Application of air and water heat transfer | Applicable | Applicable | Not applicable | Partial applicable |
| Immersion in tank or water | Applicable | Partial applicable | Not applicable | Not applicable |
| Welded to tank and reactor | Applicable | Not applicable | Not applicable | Not applicable |
| Install into existing reaction tower and other equipment | Flexible | Partial applicable | Not applicable | Not applicable |
| All welded structure | Applicable | Applicable | Not applicable | Not applicable |
| Heavy contaminated liquids and other applications | Applicable | Applicable | Partial applicable | Applicable |
| Unit area weight | Low | High | Low | High |
| Falling film, condenser and evaporator | Applicable | Applicable | Partial applicable | Partial applicable |

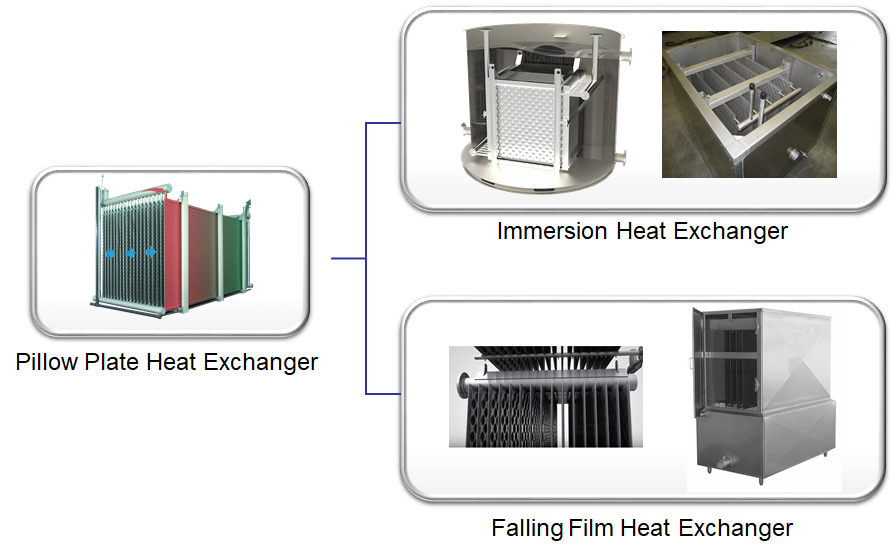

Depending on the application the Pillow Plate Heat Exchanger can be designed into either an Immersion Heat Exchanger or a Falling Film Heat Exchanger.
